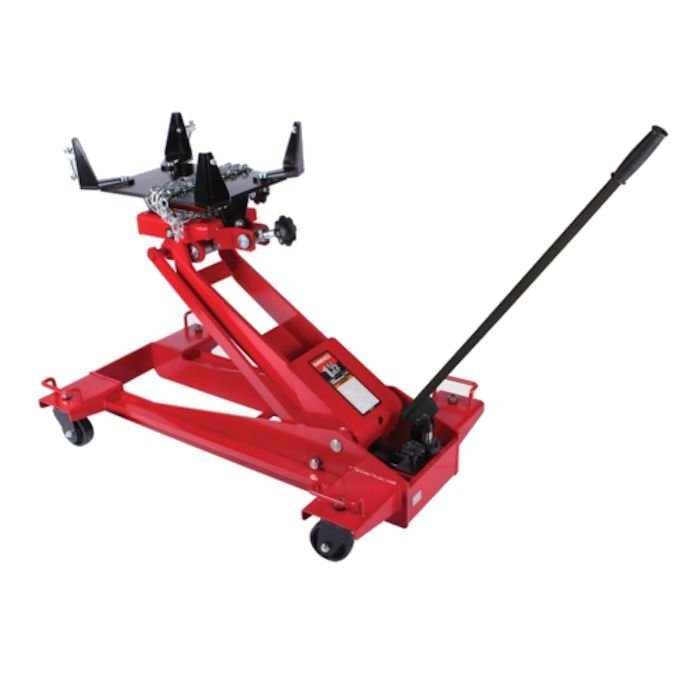

Sunex Low-Profile Transmission Jack

Description

The Sunex Tools Low-Profile Transmission Jack allows a single technician to remove, move, or install heavy truck transmissions. The wide chassis distributes the load safely and keeps the transmission stable. The universal saddle bracket is adjustable in four directions of tilt that allows for easy positioning of the transmission. Overload and bypass safety valves prevent overload of the jack and over extension of the ram. Pump handle rotates 360° for operation from any direction and the release valve allows for slow controlled lowering.

Features

• Removal, Installation, and Moving of Heavy Truck Transmissions
• Wide Chassis for Load Distribution and Stability
• Universal Adjustable Saddle with Four Brackets
• Two Safety Chains and Adjustment Hardware
• Overload and Bypass Safety Valve Prevent Overload and Over Extension
• Controlled Lowering with Release Valve
• Pump Handle Rotates 360°
• Four Grab Handles for Repositioning
• Four 4″ Ball Bearing Swivel Casters
• Integrated Chassis Trays Hold Tools and Hardware

Specifications

• Capacity: 1.5 Ton 3,000 lbs.
• Max Height: 36.62″
• Min Height: 8.7″
• Travel: 28″
• Saddle Tilt Fore and Aft: 10° by 10°
• Saddle Tilt Side to Side Aft: 10° by 10°
• Base Mounting Area (in.): 43.5″ x 26″
• Chassis Length: 43.5″
• Overall Width: 25.7″
• Shipping Dimensions: 60″ x 38.25″ × 24″
• Weight: 337 lbs.
• Warranty: 1 Year
